$19.95

(digital download)

3-Day Trial Available

Main Functions:

1. •  Animate Vehicle


2. -rotate the vehicle using the Euler angle slider bars


3. -select the Euler-Angle set from a pull-down menu


4. -animation can be shown about the Principle Rotation Vector or each Euler axis


1. •  Data Import and Export


2. -save the attitude data to an exportable file


3. -users can import an attitude file to use Aptus to display their vehicle rotations


1. •  File Settings


2. -options are provided that allow the user to select files and vary the display rate


1. •  Arrows


2. -define and animate arrows (vectors) within the 3D image to help convey the operation of the vehicle


1. •  Refer to tutorial in the User Manual for more information


Version 1.3

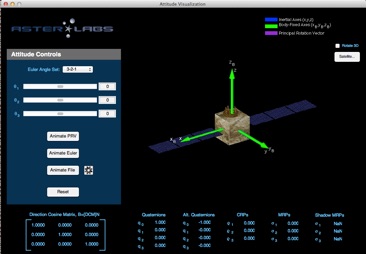

Attitude Visualization and Animation

aptus (a’•pit•us) noun; Latin fitted, connected, fastened

Coming Soon!
